Skoda Octavia 1.4 TSI 122hp – Stage3 TSI160 turbo (How to borrow your big sister’s turbo and make 230hp)

/ / ECU Remaps, Octavia, Skoda

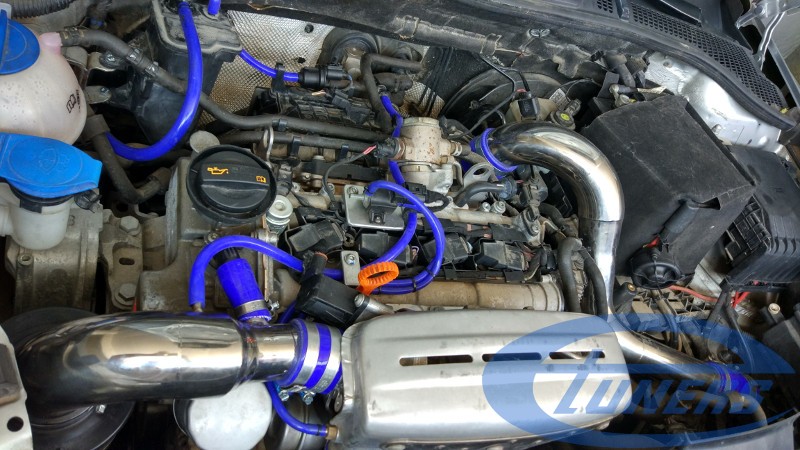

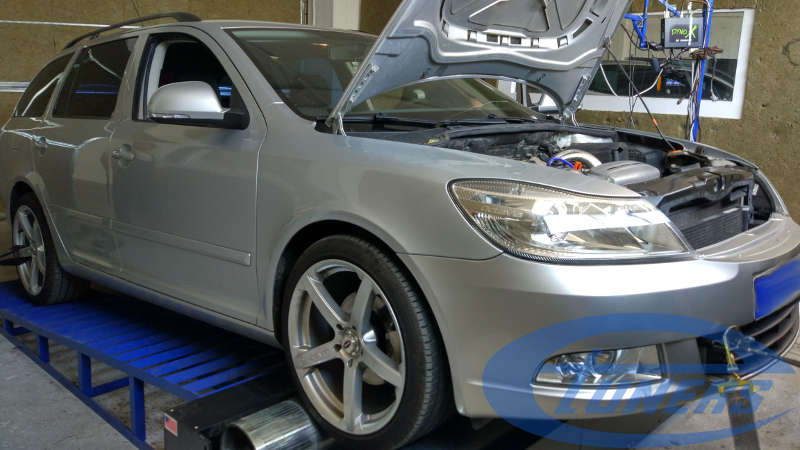

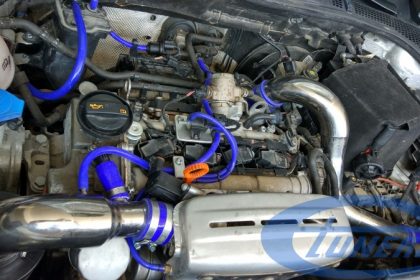

Skoda Octavia 1.4 TSI122 with TSI160 turbo kit
Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

Most TSI122 engines and specially CAX variants can receive the TSI160 turbo kit upgrade. This allows them to produce power like their CAV engine counterparts, without the complexity of needing a supercharger system. This comes at a small sacrifice of torque in the very low rpm range, up to 2500rpm. And a big gain of power at mid and high rpm after that.

In terms of reliability, the engine can withstand the abuse and the turbo is an OEM unit.

Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

Upgrade specifications

  • 98RON fuel
  • Upgraded intercooler, stock water/air cooler removed
  • Upgraded turbo to the one from 1.4 TSI160 engines
  • Upgraded exhaust
Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

Skoda Octavia 1.4 TSI122 with TSI160 turbo kit

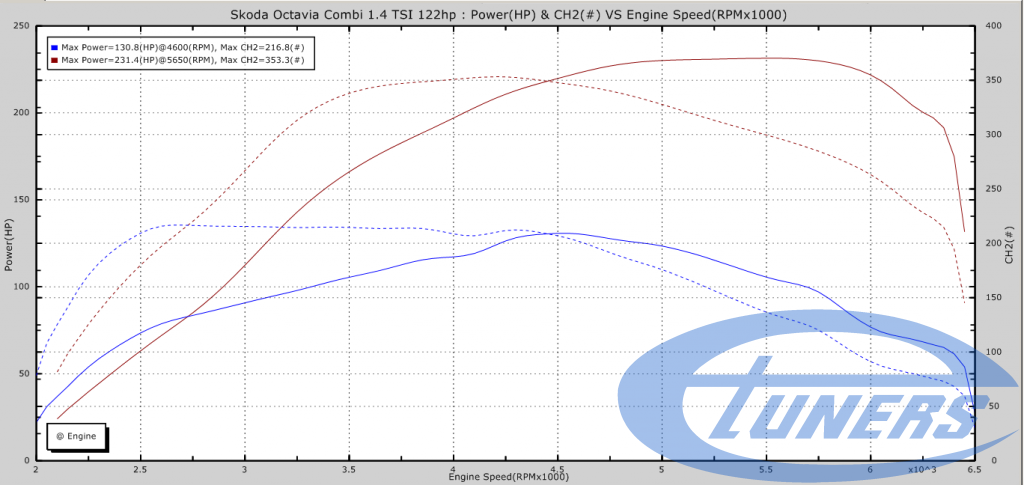

Performance results

  • Maximum flywheel horsepower: 231.4 Hp (measured 130.8hp as stock with intercooler and exhaust and stock turbo), gains 101hp
  • Maximum flywheel torque: 353 Nm (measured 217 Nm as stock), gains 125 Nm
